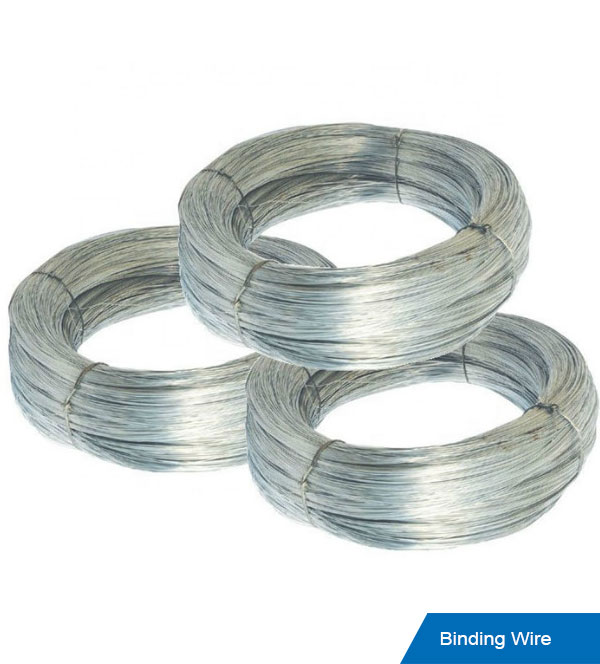

Binding wire& Gauge wires
1 Input Material for binding and gauge wire: Mild steel 8/7/5.5 MM WRC in Coils IS Grade: 7887: 2001 , Gr:3(RINL:SAE 1008 DQ).
MS wire specifications:- 1. C : 0.1% max
- 2. Mn: 0.3-0.5 %
- 3. Sulphur: 035-0.04% max
- 4. Phosphorus: 0.035-0.04% max
- 5. Si: 0.15-0.35 %
- Al: o.o2%
Products manufactured
- Binding wire Size:0.9 mm
- 12 gauge wire(2.6 mm)
- 16 Gauge(1.6 mm) –Pins purpose
- 17 Gauge(1.4 mm)- Barbed wire Purpose
- 18 Gauge(1.2 mm) – Nails
- 8 Gauge (4 MM)-For ISP consumption for RM bundling purpose
- 3.15 mm- Welding rods purpose
Suppliers
- RINL
- Prakash industries, Raipur
- Jai jagadamba industries, Bhilai
Production Capacity & Raw Material:
- i) M S Binding Wire 20 gauge - Prod Capacity of 1,000 mts/month operation.
- Raw-material : M S Wire Rod Coils 5.5mm SAE 1008 (RINL/JSPL/JSW/SAIL)
- ii) M S Gauge Wires 6g, 8g, 10g, 12g, 14g, 16g, 18g - Prod Capacity of 500 mts/month. (Used in Electrodes, Meshes, Cement Pipes, etc)
- Raw-material : M S Wire Rod Coils 5.5/6.0/7.0mm SAE 1008 (RINL/JSPL/JSW/SAIL)
